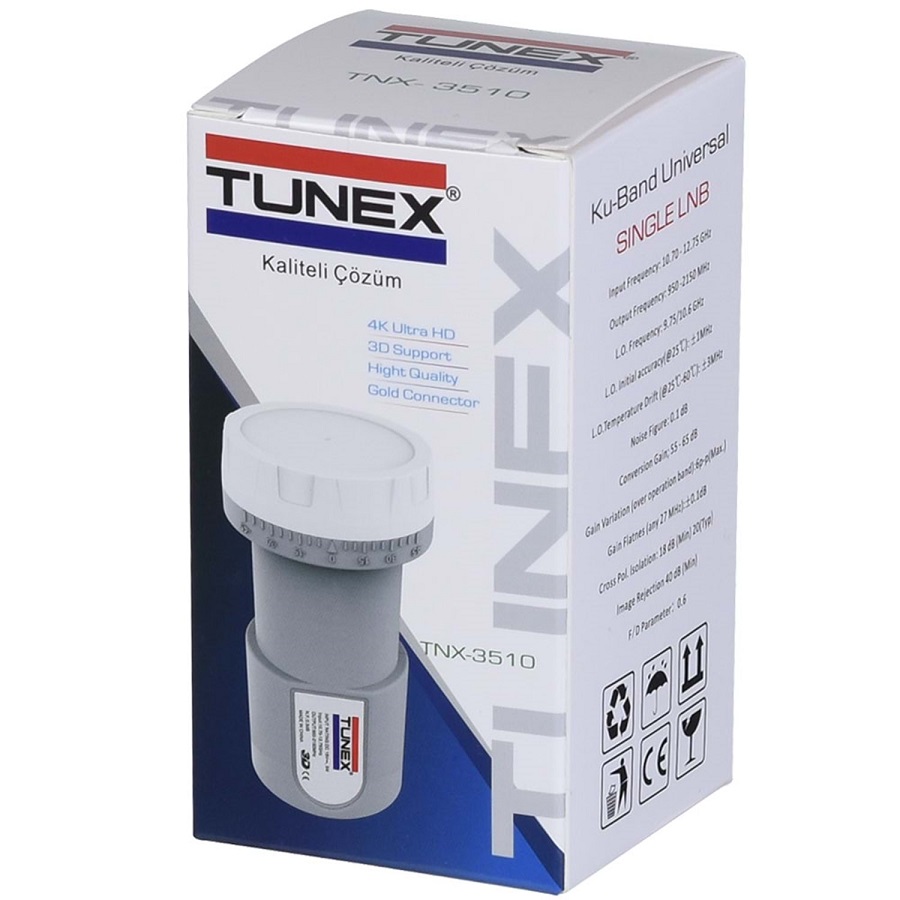

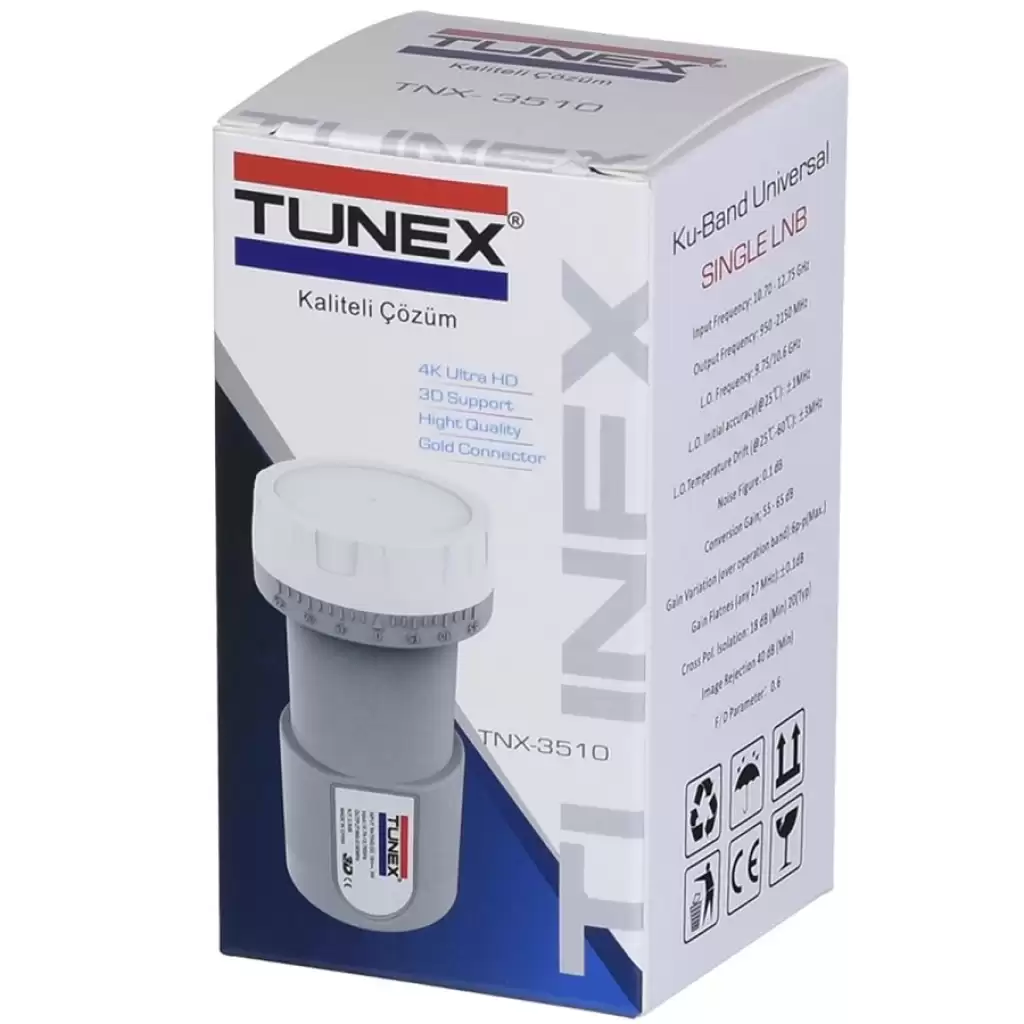

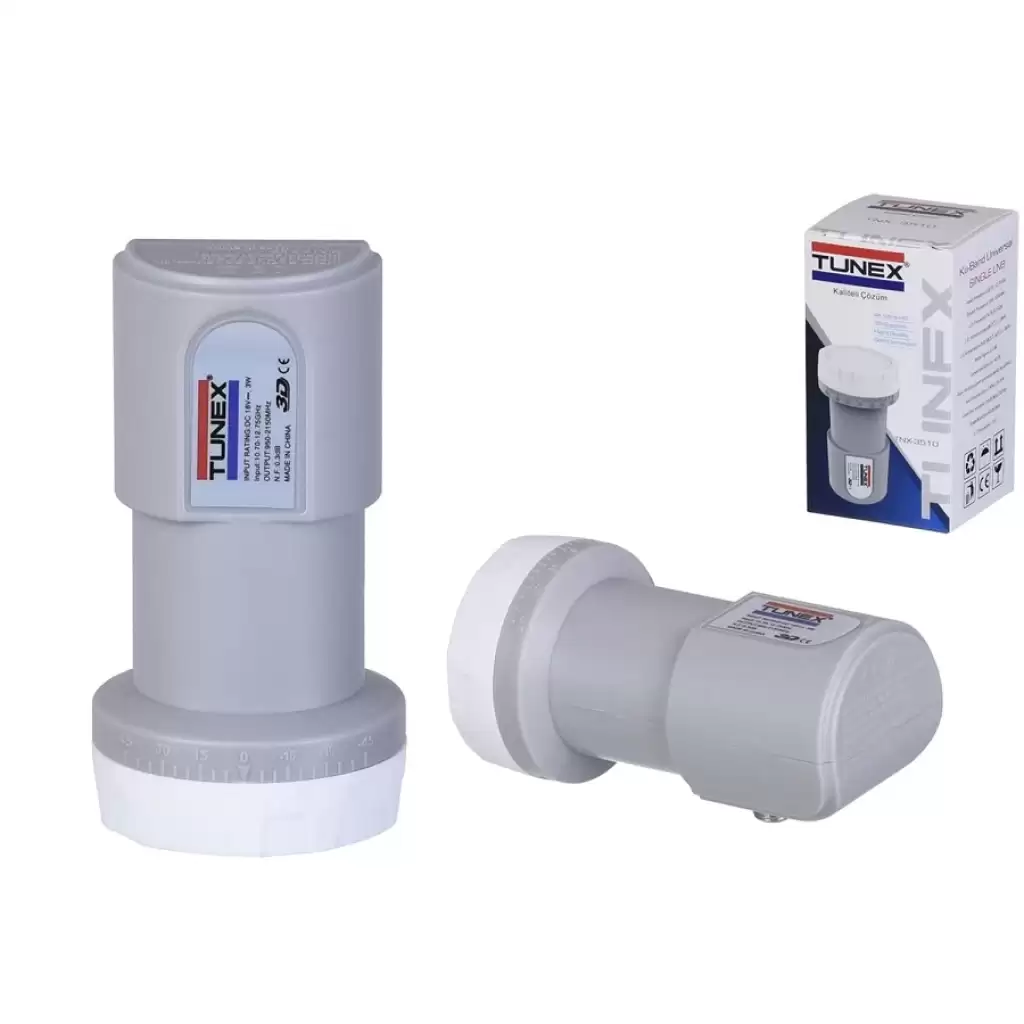

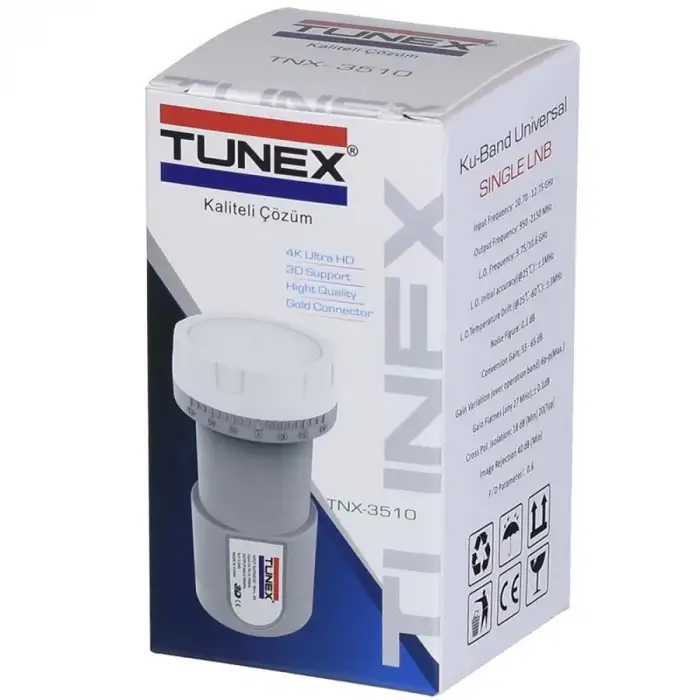

Tunex 4K Ultra Hd Ku-Band Tekli Lnb TNX-3510

İnput Frequency : 10,70 - 12,75 GHz

Output Frequency : 950 - 2150 MHz

L.O. Frequency : 9,75/10,6 GHz L.O. Initial Accuracy (@ 25°C):±1 MHz L.O. Tempreture Drift (@ 25°C - 60°C):±3 MHz Noise Figure : 0,1 dB Conversion Gain : 55 - 65 dB Gain Variation (over operating band): 6p-p (Max) Gain Flatnes (any 27 Mhz):±0,1dB Cross Pol. Isalation : 18 dB (mMn) 20 (Typ) Image Rejection 40 dB (Min) F/D Parameter : 0,6
